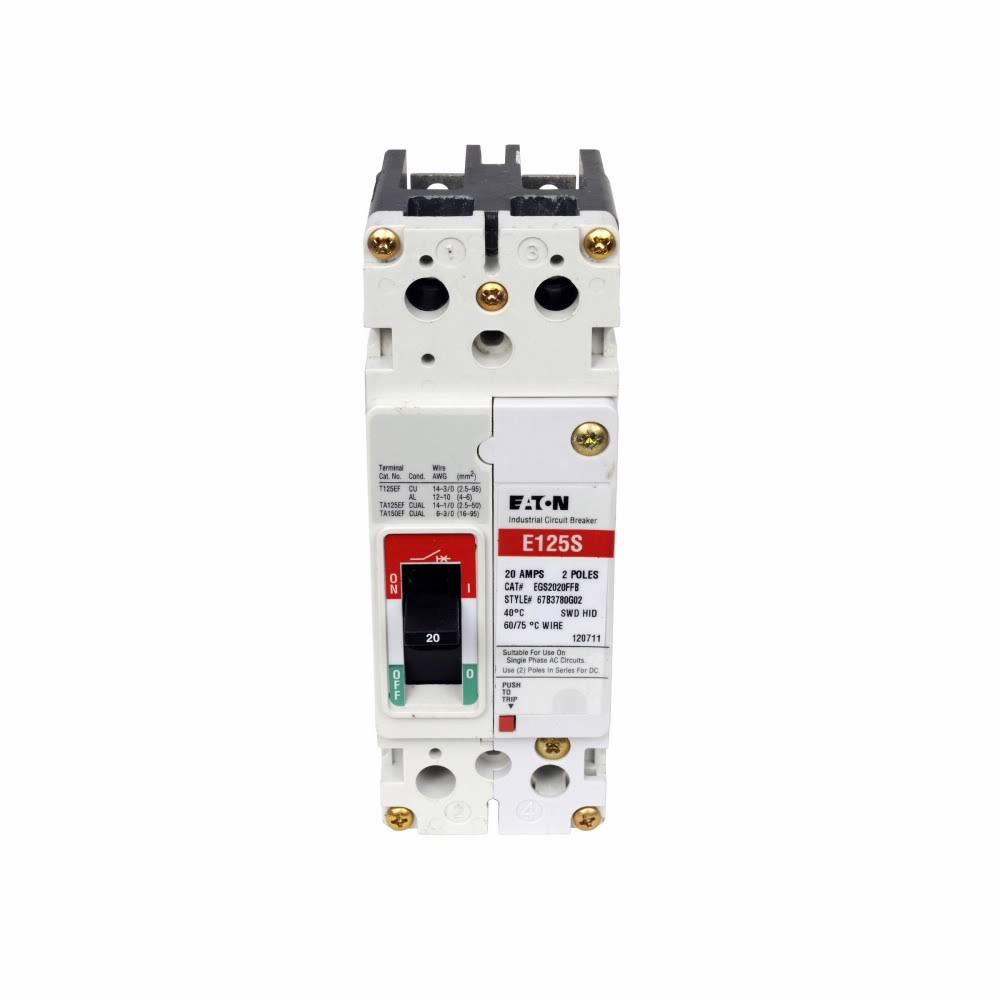

Molded Case Circuit Breaker J204993
Sale price
$30.50
Regular price $132.58
Skip to product information
MOLDED CASE, FIXED THERMAL FIXED MAGNETIC TYPE; 2 INCH WIDTH X 2.99 INCH DEPTH X 5.5 INCH HEIGHT SIZE; 690 MAX. AC VOLTAGE RATING; 250 MAX. DC VOLTAGE RATING; UL 489, CSA C22.2, CE APPROVAL; 240/480/600 VAC AT 50/60 HZ, 125/250 VDC (UL/CSA/NEMA); 220 TO 240/380 TO 415/600 TO 690 VAC AT 50/60 HZ, 125/250 VDC (IEC) VOLTAGE RATING; 100 KILOAMPERE AT 240 VAC, 65 KILOAMPERE AT 480 VAC, 25 KILOAMPERE AT 600 VAC, 42 KILOAMPERE AT 125/250 VDC (UL/CSA/NEMA); 100 KILOAMPERE AT 220 TO 240 VAC, 70 KILOAMPERE AT 380 TO 415 VAC, 6 KILOAMPERE AT 660 TO 690 VAC, 42 KILOAMPERE AT 125/250 VDC (IEC INTERRUPTING RATING; 45 AMPERE AT 40 DEGREE CELSIUS CURRENT RATING; 2 POLE(S); ALUMINUM/COPPER STANDARD PRESSURE LINE AND LOAD TERMINAL TERMINAL TYPE; EG FRAME TYPE; CUTLER-HAMMER[R] BRAND; EGH MODEL CHL EGH2045FFB 2P 45A CIRCUIT BREAKER
Molded Case Circuit Breaker J204993
Sale price
$30.50
Regular price $132.58
Shipping calculated at checkout.
