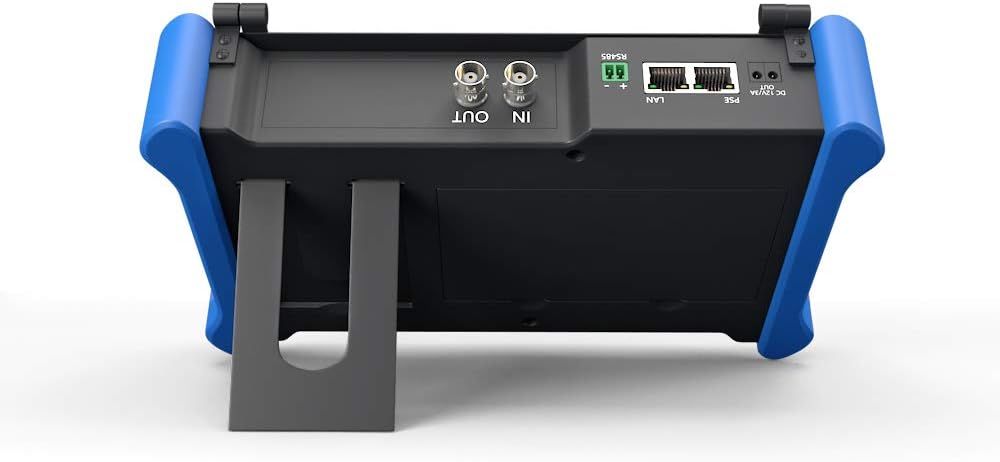

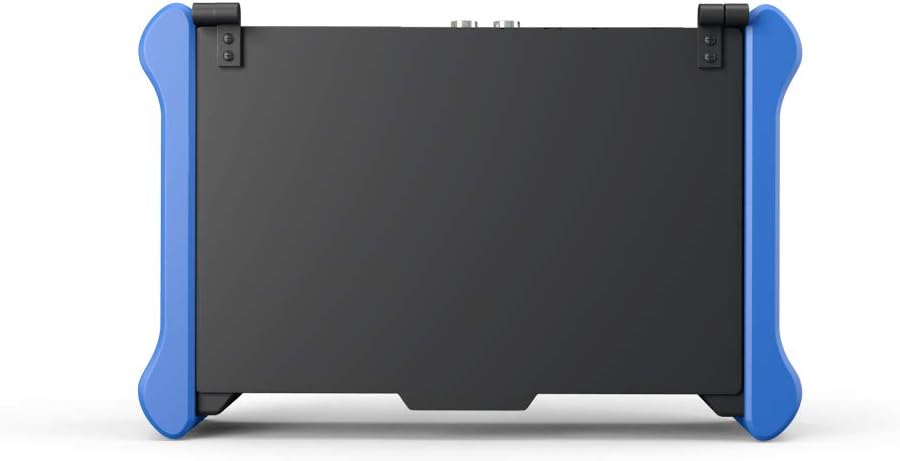

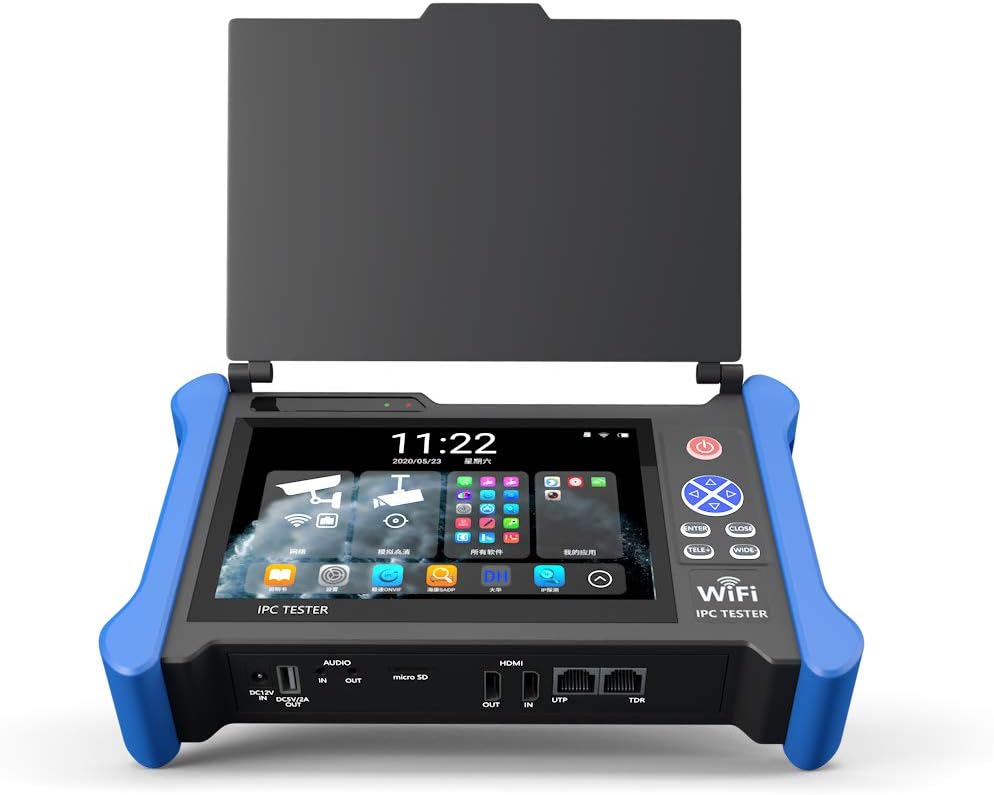

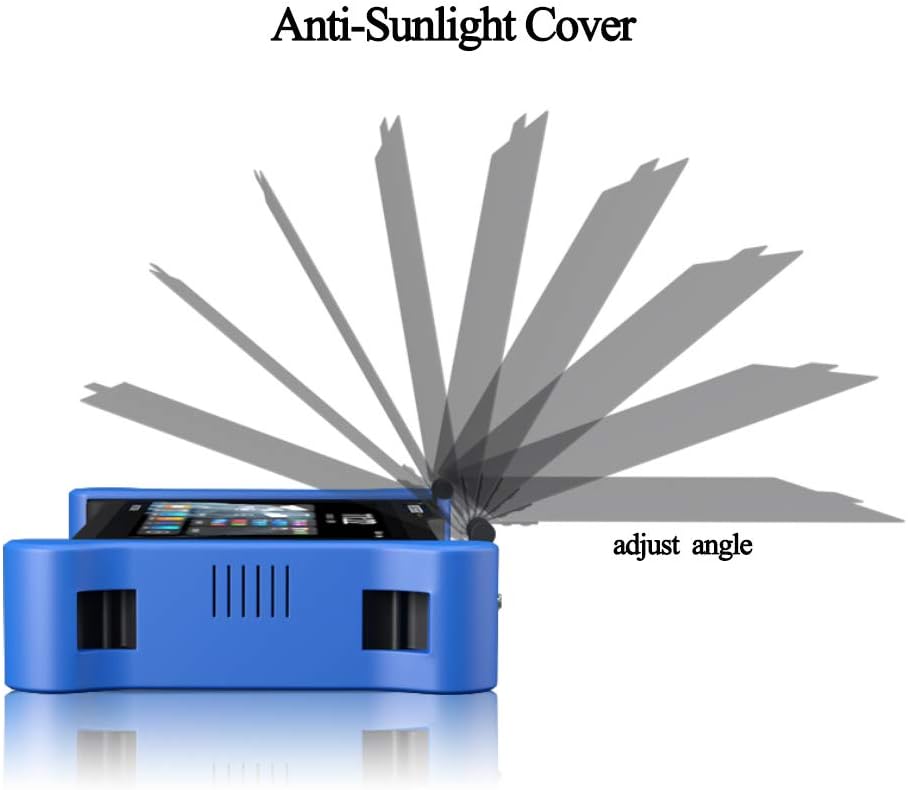

7 Inch IPS Touch Screen H.265 6K IP Camera Tester with Anti-Sunlight Cover B80654
7 Inch IPS Touch Screen H.265 6K IP Camera Tester with Anti-Sunlight Cover B80654
Support max 6K IP camera and CVBS Analog Camera
Support cable connection status test:display cable length, attenuation, quality, reflectivity, impedance parameters, on-off status,sequence status
With HDMI Output, support 4K 3840*2160 video input
Support PoE 48V output, DC5V 2A output, DC12V 3A output
With Color bar generator: it generates color bar image in the format of PAL
Specification
1.Support max 6K IP camera and Analog Camera.
2.Support HD camera: CVI 8MP+TVI 8MP+AHD 8MP
3.Compatible with Onvif standard protocol, compatible to most cameras in the market.
4.Screen resolution: HD IPS 1920 × 1200, instant image transmission.

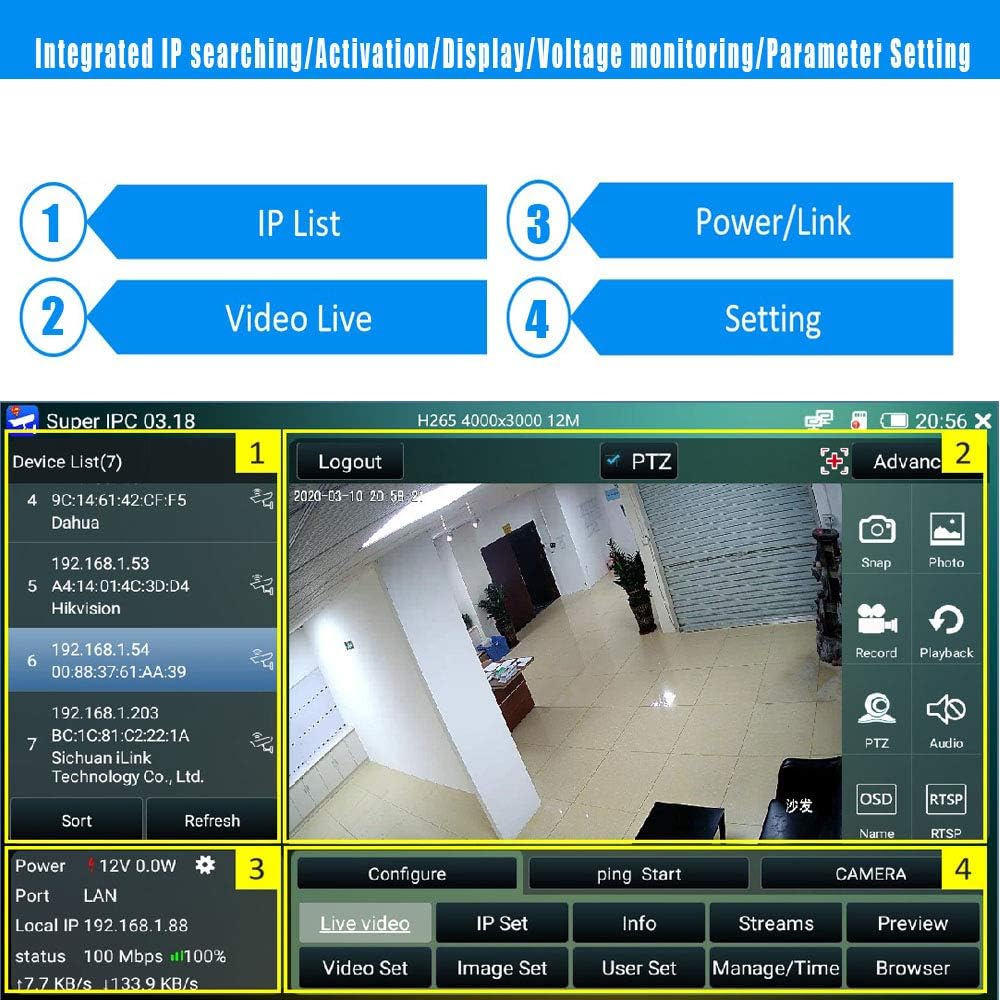

5.IP discovery tool, it is used to scan the whole network segment IP, and auto-modify tester’s IP address. Make your job much more efficient.
6.Open source, can install Android software.
7. H265+,H265, H264 network camera main stream test.
8.Support wireless WIFI(10M/100M/1000M) and hotpots, easily connect and test wireless WIFI camera.
9.RS485 Port: Receive, send and analyze data, used for PTZ protocol analysis, etc.
10.Network tools: to scan all the IP address in the network, and test current network condition and PING value.
11.It can update software on line on store.
12.support to take snapshot at any time and the image can be modified 8 times.
13.RTSP player can play RTSP network video stream directly.
14.UTP Cable test: Test any core connection sequence and on-off status.
15.Network cable TDR test function can display cable length, attenuation, quality, reflectivity, impedance parameters.
16.With color bar generator.
17.Rechargeable 7800mA / 7.4V polymer lithium battery. Working hour:6~10 hours.
